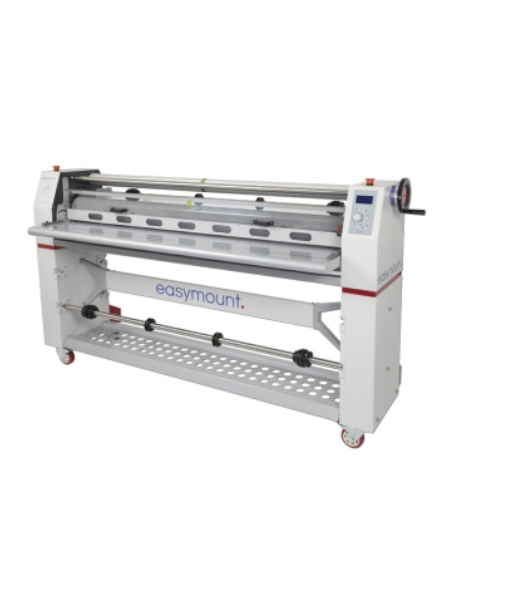

Easymount 1600 SHW
- 0 Review(s)
- Add your review
- instock
- Easymount 1600 SHW
Key Features
Great for use in
Ideal when laminating
- 6m/20ft a minute
- Variable speed control
- Foot pedal
- Reverse mode
- Multilingual control panel
- 25mm/1” mounting thickness
Great for use in
- Sign makers
- Print finishers
Ideal when laminating
- Posters, graphics and signs
- Mounting prints to board
- Pop-up displays
- Applying vinyls, tapes and adhesive films
- Outdoor signage
| Accessories | |
|---|---|
| Additional Mandrels |  |
| Take-up Unit | |
| Dust Cover |  |
Price
Description
Easymount is designed to perform and built to last.
The Easymount 1600 Independently Heated Rollers laminator is designed to perform and built to last. The advanced features allow you to laminate and mount.
Designed in-house by Vivid, the Easymount gives your business extra capacity by allowing you to offer your customers a complete service that you previously had to outsource.
| Specifications | |
|---|---|
| Laminating Speed (m/min / feet/min) | 6 / 20 |
| Max. Width (mm / inches) | 1600 / 63 |
| Mounting Thickness (mm / inches) | 25 / 1 |
| Roller Diameter (mm / inches) | 130 / 5 |
| Warm-up Time (mins) | 15 |
| Hot Roller Heater System | Internal Infrared |
| Laminating Temperature Range (°C/°F) | 0-130 / 32-266 |
| Control Panel | Digital |
| Pressure Adjustment | Manual/Gauge |
| Film Core (mm / inches) | 75 / 3 |
| Power Supply AC (v, 50Hz) | 220/240 |
| Power Supply AC (v, 60Hz) | 240 |
| Power Supply Required (Amps) | – |
| Power Consumption (W) | 5000 |
| Dimensions – Width (mm / inches) | 1990 / 78 |
| Dimensions – Depth x Height (mm / inches) | 650×1255 / 26×49 |
| Gross Machine Weight (Kg / lbs) | 205 / 452 |
| Warranty | 1 Year* |
