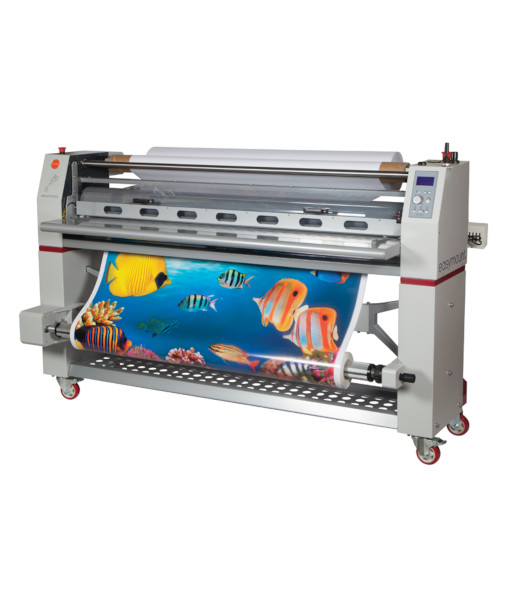

Easymount Air 1600 Single Hot
- 0 Review(s)
- Add your review
- instock
- Easymount Air 1600 Single Hot
Reviews ★★★★★
Key Features
Great for use in
Ideal when laminating
Key Features
- NEW Swing-out arms for easier loading of laminate and film
- Pneumatic air pressure
- 10m/33ft a minute
- 30mm/13⁄16” mounting thickness
- Variable speed control
- Foot pedal
- Reverse mode
- Multilingual control panel
Great for use in
- Sign makers
- Print finishers
Ideal when laminating
- Posters, graphics and signs
- Mounting prints to board
- Pop-up displays
- Applying vinyls, tapes and adhesive films
- Outdoor signage
| Accessories | |
|---|---|
| Silent Compressor |  |
| Additional Mandrels | |
| Take-up Unit | |
| Dust Cover |  |
Price
Description
The award-winning Easymount Air is a revolutionary product in the wide format lamination & mounting market.
Winner of Wide-Format & Signage Readers’ Choice Top Products Awards and voted ‘Highly Commended‘ at the 2015 British Sign Awards, the patented technology within the Easymount Air uses one of the most advanced concepts ever seen in a wide format laminator.
Pneumatic air pressure controls the laminating rollers, allowing you to mount and laminate with incredible accuracy and speed.
The Easymount EM-1600SH now also features swing-out arm technology at both the front and rear of the system.
This makes loading both vinyl and laminate a whole lot easier and less time-consuming with no compromise on the finish.
| Specifications | |
|---|---|
| Laminating Speed (m/min / feet/min) | 10 / 33 |
| Max. Width (mm / inches) | 1600 / 63 |
| Mounting Thickness (mm / inches) | 30 / 1 |
| Roller Diameter (mm / inches) | 130 / 5 |
| Warm-up Time (mins) | 10 |
| Hot Roller Heater System | Internal Infrared |
| Laminating Temperature Range (°C/°F) | 0-60 / 32-140 |
| Control Panel | Digital |
| Pressure Adjustment | Pneumatic |
| Film Core (mm / inches) | 75 / 3 |
| Power Supply AC (v, 50Hz) | 220/240 |
| Power Supply AC (v, 60Hz) | 110 |
| Power Consumption (W) | 1500 |
| Dimensions – Width (mm / inches) | 2190 / 86 |
| Dimensions – Depth x Height (mm / inches) | 650×1255 / 26×49 |
| Gross Machine Weight (Kg / lbs) | 245 / 540 |
| Warranty | 1 Year* |
