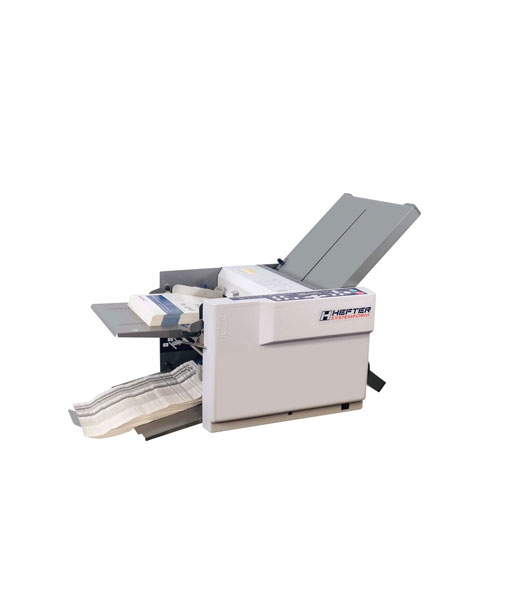

Hefter TF MEGA-A plus (up to A3) folding machine
- 0 Review(s)
- Add your review
- instock
Technical specifications TF MEGA-A
- Standard feature: FOLDING MACHINE TF MEGA-A
- Paper sizes : A6 to A3
- Paper weight*: 50 to 150 g/m2
- Fold types: Single, Z-, wrap, double parallel, door, engineering and cross fold
- Feeding capacity/document station, max.*: 500 sheets (80g/m2)
- Fold type quick adjustment with self explanatory scale : no
- Automatic fold type adjustment on operating display : yes
- Fine adjustment of both fold plates : yes
- Folding performance, max.* : 7.200 sheets /h
- Automatic feeding : yes
- Central paper width adjustment : yes
- Automatic „Paper-out“ and double sheet control : yes
- Display with 4 digit, digital job counter : yes
- Pre-counter : yes
- Sheet pressure adjustable : yes
- Separation pad adjustable : yes
- Fine adjustment of the fold parallelity : yes
- Conveyor stacker, fold-out and extensible to the paper length : automatically
- Capacity/Conveyor stacker, max.*: 300 sheets
- Dimensions, in cm (L x W x H) 93 x 48 x 54 cm (ready to work)
- Weight : 37 kg
Price
Description
High performance at a reasonable price – Folding from A6 up to A3
This folding machine TF MEGA-A plus offers any standard fold type – even cross fold in two steps. The adjustment of the fold type is done automatically with the operating display. Additionally, an exact fine adjustment can be made by a keystroke – if necessary. For processing different paper weights trouble free, not only the pressure to the feeded paper can be adjusted but also the separator pad. Even the integrated conveyor stacker is automatically adjusted – depending on paper form and fold type – thus always prepared for best performance. It has a capacity of up to 300 sheets.
Highlights of the folding machine TF Mega-A plus
- Paper sizes from A6 up to A3
- 7 fold types: single, Z-, wrap, double parallel, door, engineering and cross fold
- Automatic fold type and fine adjustment
- Adjustable contact pressure of the paper feed
- Adjustable separation of the sheets
- Central form width setting
- Paper weights: 50 – 160 g/ m2
- Fine adjustment of the fold parallelity (seewing)
- Pre-counter with interval function
- “Paper-out” and jam control
- Double sheet control

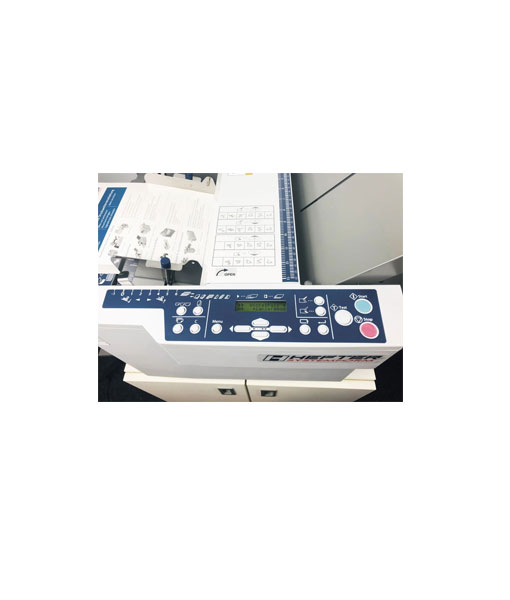

- Operating display with 4 digit job counter, pre-counter and status information
- Automatic adjustable conveyor stacker
- Max. speed 14.400 sheets/ h
