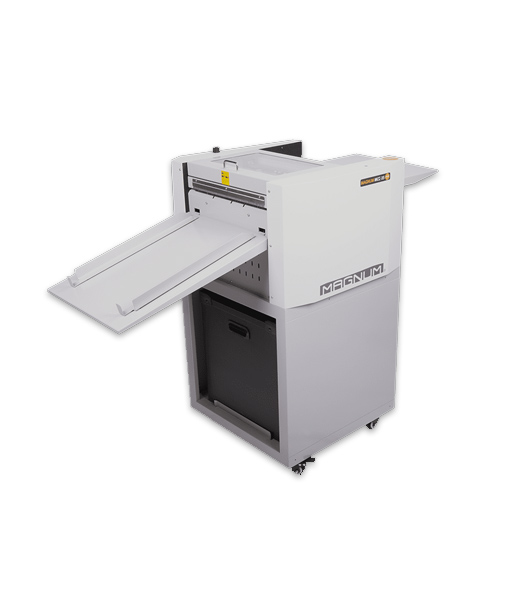

MAGNUM MC-35 – Creasing / Perforating
- 0 Review(s)
- Add your review
- instock
- VTVIVMC35
The Magnum MC-35 is a semi-automatic creasing and perforation system, designed to increase the efficiency and accuracy of your print finishing.
The inclusion of patented Sniper Technology means there is no need to input measurements for crease positions. Simply put a pen or printed mark where you want the crease and the Magnum does the setup for you.
KEY FEATURES
- HIGH PRECISION CREASE POSITION
- EASY OPERATION
- OPTIONAL SLIDE-IN TOOLS
- AUTO COMPENSATION OF ACCURACY ACCORDING TO PAPER THICKNESS
- CREASE DEPTH AND SKEW ADJUSTMENT
- PROGRESSIVE FUNCTION
- TIME SAVING WITH THE ABILITY TO CREASE/PERF
- SUPPORTS LAMINATED STOCKS
Price
Description
Infeed Semi-Automatic
Min. Paper Size 50x90mm
Max. Paper Size 330x645mm
Max. Paper Thickness (gsm) 350
Paper Type Chrome, Laminated, UV Coated etc.
Accuracy +/-0.2mm
Max. Speed Up to 40 sheets/minute (A4/1 Crease)
Crease/Perf in one pass Up to 32 times
Output Capacity 30mm
Creasing Width Interchangeable crease (0.6, 1, 1.2, 1.4mm)
Control and Display Keyboard and LCD Screen
Program Memory 30
Progressive Function Standard
Feeding Type Manual feed
Gross Machine Weight 46kg
