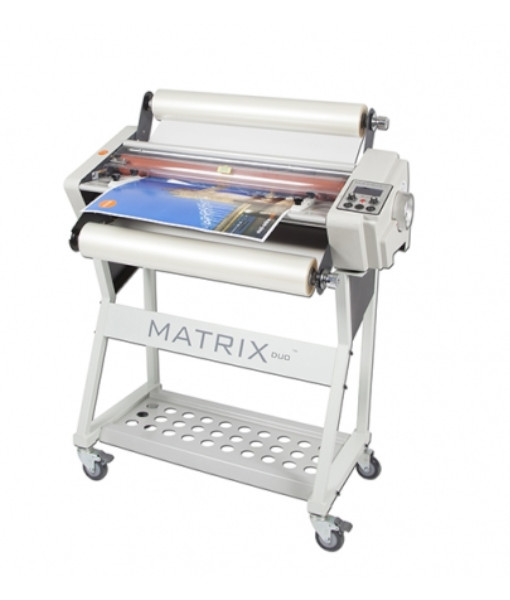

Matrix Duo MD-650
- 0 Review(s)
- Add your review
- instock
- Matrix Duo MD-650
Key Features
- 1.4m/5ft a minute
- 77mm/3” & 25mm/1” core
- adjustable anti-curl bar
- single sided lamination
- encapsulation
- double sided lamination
Great for use in
- digital printers
- in-house print rooms
- copy and print shops
Ideally suited for
- business cards
- menus
- brochures
- posters & prints
- book covers
| Accessories | |
|---|---|
| Optional Stand |  |
| Film Slitter |  |
| Film Perforating System | |
| Flatbook | |
- Yes
- No
- Standard
Price
Description
Matrix Duo is a multipurpose single/double sided roll fed system ideal for both laminating and encapsulating.
The Matrix Duo is an innovative laminating system designed for laminating and encapsulating.
The Matrix Duo gives the flexibility of single side lamination, encapsulation and even double side lamination, providing an affordable and effective solution, compared to outsourcing.
| Specifications | |
|---|---|
| Laminating Speed (m/min / feet/min) | 1.4 / 5 |
| Encapsulating Speed (mm/min / inches/min) | 1.4 / 0 |
| Max. Width (mm / inches) | 650 / 26 |
| Warm-up Time (mins) | 10 |
| Laminating Temperature Range (°C/°F) | 0-140 / 32-284 |
| Film Core (mm / inches) | 25 & 75 / 1 & 3 |
| Power Supply AC (v, 50Hz) | 220/240 |
| Power Supply AC (v, 60Hz) | 110 |
| Power Supply Required (Amps) | – |
| Power Consumption (W) | 1600 |
| Dimensions – Width (mm / inches) | 960 / 38 |
| Dimensions – Depth x Height (mm / inches) | 480×400 / 19×16 |
| Gross Machine Weight (Kg / lbs) | 55 / 121 |
| Warranty | 1 Year* |
