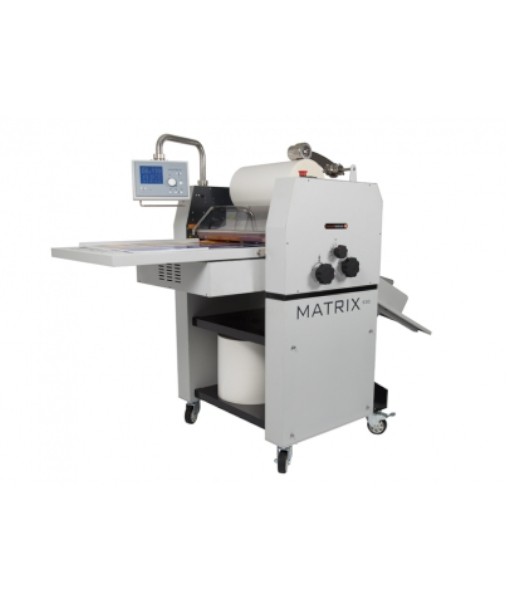

Matrix MX-530
- 0 Review(s)
- Add your review
- instock
- Matrix MX-530
Key Features
Great for use in
Ideally suited for
- An easy-to-use fingertip control panel
- Anti-curl technology ensures that whatever you laminate - comes out smooth and flat.
- Semi-automatic feed with auto-overlap
- Automatic separator
Great for use in
- Commercial printers
- Digital printers
- Copy and print shops
Ideally suited for
- Business cards
- Menus
- Book covers
- Brochures
- Flyers
| Accessories | |
|---|---|
| Optional Stand |  |
| Film Slitter |  |
| Film Perforating System | |
| Ultra-Quiet Compressor |  |
| Flatbook cutting & perforating accessory | |
Price
Description
Matrix does the entire job from start to gloss or matt finish.
The Matrix is designed in-house by Vivid to help breathe life into your business by allowing you to provide your customers with a service you previously had to outsource.
The best value single-sided laminator on the market, is simple to use, easy to maintain, quick and reliable.
Take a look at the full range of accessories available for the Matrix.
| Specifications | |
|---|---|
| Max. Laminating Speed (m/min / feet/min) | 10 / 33 |
| Max. Laminating Film Width (mm / inches) | 510 / 20 |
| Paper Thickness (gsm / lbs) | 135+ / 90 |
| Warm-up Time (mins) | 10 |
| Laminating Temperature Range (°C/°F) | 0-140 / 32-284 |
| Control Panel | Multilingual LCD |
| Pressure Adjustment | Manual |
| Film Core (mm / inches) | 77 / 3 |
| Power Supply AC (v, 50Hz) | 220/240 |
| Power Supply AC (v, 60Hz) | 240 |
| Power Supply Required (Amps) | 13 |
| Power Consumption (W) | 2400 |
| Foiling, Holographic, Glitter Lamination & Spot UV-style effects | N/A |
| Dimensions – Width (mm / inches) | 900 / 35 |
| Dimensions – Depth x Height (mm / inches) | 2050×1400 / 81×55 |
| Gross Machine Weight (Kg / lbs) | 220 / 485 |
| Warranty | 1 Year* |
