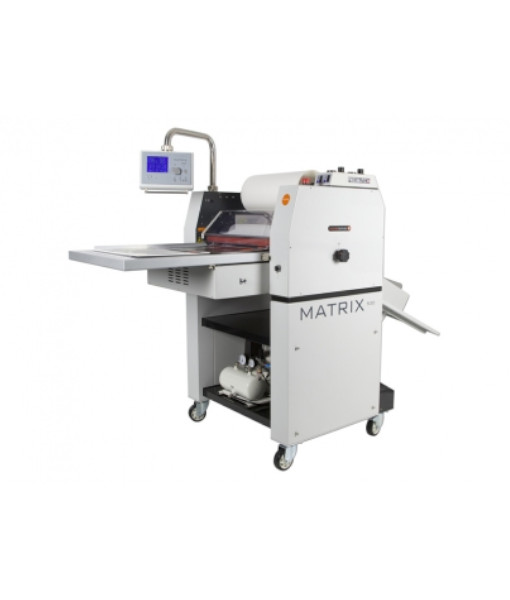

Matrix MX-530P
- 0 Review(s)
- Add your review
- instock
- Matrix MX-530P
Key Features
- Pneumatic pressure
- Easy-to-use control panel
- Anti-curl technology
- Semi-automatic feed
- Automatic seperator
Great for use in
- Commercial printers
- Digital printers
- Copy and print shops
Ideally suited for
- Business cards
- Menus
- Book covers
- Brochures
- Flyers
| Accessories | |
|---|---|
| Omni-Flow Deep Pile Feeder |  |
| Optional Stand |  |
| Film Slitter | |
| Film Perforating System | |
| Ultra-Quiet Compressor | |
| Flatbook cutting & perforating accessory | |
Price
Description
Matrix Pneumatic delivers even faster production times than our standard systems.
The Matrix Pneumatic can run up to twice the speed of our standard systems. Printers can laminate work even faster to get the job finished and back to the customer.
Pneumatic pressure rollers allow you to laminate certain substrates up to 50% quicker, saving both time and cost.
The Pneumatic option is produced in Britain which shortens our supply chains and lead times. We’ve used the highest quality components within the systems, including Omron switches and Schneider electrics.
Add a Matrix Omni-Flow 370 (SRA3) or OmniFlow 460 (SRA2) Deep Pile Feeder for fully automated laminating or foiling.
| Specifications | |
|---|---|
| Max. Laminating Speed (m/min / feet/min) | 10 / 33 |
| Max. Laminating Film Width (mm / inches) | 510 / 20 |
| Paper Thickness (gsm / lbs) | 135+ / 90 |
| Warm-up Time (mins) | 10 |
| Laminating Temperature Range (°C/°F) | 0-140 / 32-284 |
| Control Panel | Multilingual LCD |
| Pressure Adjustment | Pneumatic |
| Film Core (mm / inches) | 77 / 3 |
| Power Supply AC (v, 50Hz) | 220/240 |
| Power Supply AC (v, 60Hz) | 240 |
| Power Supply Required (Amps) | 13 |
| Power Consumption (W) | 2400 |
| Foiling, Holographic, Glitter Lamination & Spot UV-style effects | Yes |
| Dimensions – Width (mm / inches) | 900 / 35 |
| Dimensions – Depth x Height (mm / inches) | 2050×1400 / 81×55 |
| Gross Machine Weight (Kg / lbs) | 240 / 529 |
| Warranty | 1 Year* |
