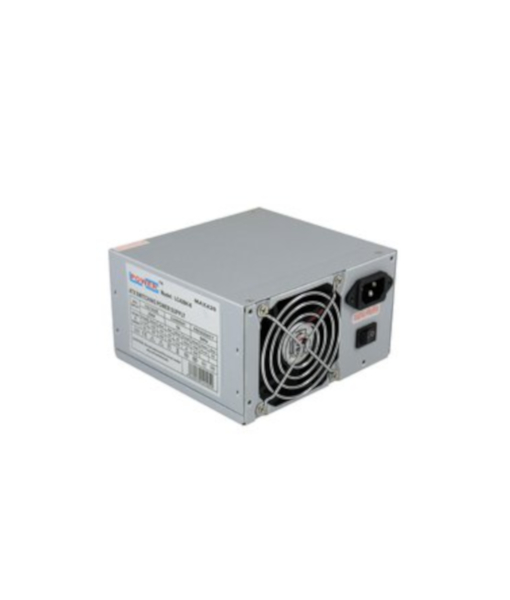

Power Supply unit 420W ATX
- 0 Review(s)
- Add your review
- instock
- LC-420H-8 V1.3-IE
Technical overview Power supply type Office Series ATX standard ATX V1.3 Connectors : 20+4 pin mainboard 1x 35 cm 4 pin mainboard 12V 1x 35 cm PCI-Express - SATA 4 (2x 40 / 2x 55 cm) PATA 2 (2x 70 cm) FDD 1x 80 cm Mark of conformity TÜV, CE Fan 80 mm PFC passive Dimension h x w x d 84 x 150 x 140 mm Weight (retail) 1,34 kg Power rating 420W max. / peak +3,3V 16A +5V 16A +12V 15A Standby consumption 0,17W - ErP 2013 Temperature control for case fan yes Multirange (110V/220V) no Haswell compatible yes
Price
Description
Technical overview
Power supply type Office Series
ATX standard ATX V1.3
Connectors : 20+4 pin mainboard 1x 35 cm
4 pin mainboard 12V 1x 35 cm
PCI-Express – SATA 4 (2x 40 / 2x 55 cm)
PATA 2 (2x 70 cm)
FDD 1x 80 cm
Mark of conformity TÜV, CE
Fan 80 mm
PFC passive
Dimension h x w x d 84 x 150 x 140 mm
Weight (retail) 1,34 kg
Power rating 420W max. / peak
+3,3V 16A
+5V 16A
+12V 15A
Standby consumption 0,17W – ErP 2013
Temperature control for case fan yes
Multirange (110V/220V) no
Haswell compatible yes
