Description

• ATX standard ATX V2.3
  Connectors :20+4 pin mainboard 1x 55 cm: 4+4 pin mainboard 12V (8 pin EPS): 1x 45 cm
  PCI-Express : 2x PCI-Express V2.0 : 6+2-Pin (1x 55/1x 70 cm):SATA 5 (2x 55/2x 65/1x 75 cm): PATA 3 (1x 55/1x 65/1x 75 cm): FDD 1x 55 cm
• Mark of conformity CE / TÜV
• Fan 120 mm
• PFC active
• Dimension h x w x d 86 x 150 x 140 mm
• Weight (retail) 2,082 kg
• max. peak load 650 W +3,3V 18 A:  +5V 18 A : max. combined 100 W : +12V 50 A: max. combined 600 W
• Efficiency > 88%
• Standby consumption <0,5W – ErP 2013
• Temperature control for case fan yes
• Security circuitry OVP = Over-Voltage Protection
• OCP = Over-Current Protection
• OPP = Over-Power Protection
• SCP = Short-Circuit Protection
• UVP = Under-Voltage Protection
• Multirange (110V/220V) no
• Haswell compatible yes
• Barcode 4260070125638

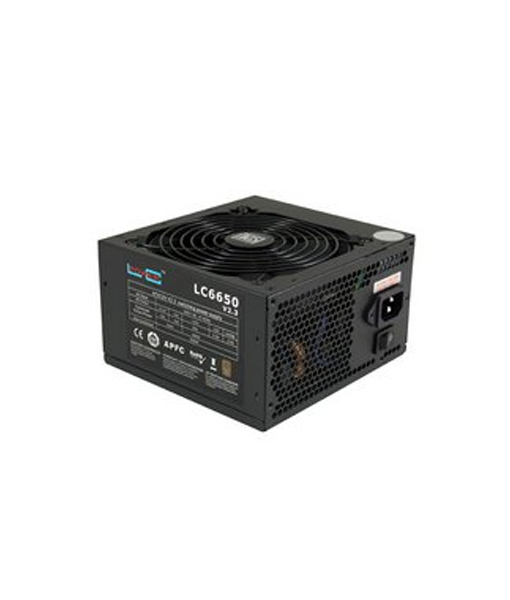

• Manufacturer code LC6650 V2.3
