TOSINGRAF Perforating Machine A3+ size Auto MICROPERF A3 MSC
- 0 Review(s)
- Add your review
- instock
- High pile drawer friction paper feeder (capacity 500 sheets), with 3 sheet pick-up wheels, lateral squares and metric references
- Possibility to register the sheet feeder team
- It can be equipped with up to 5 perforators

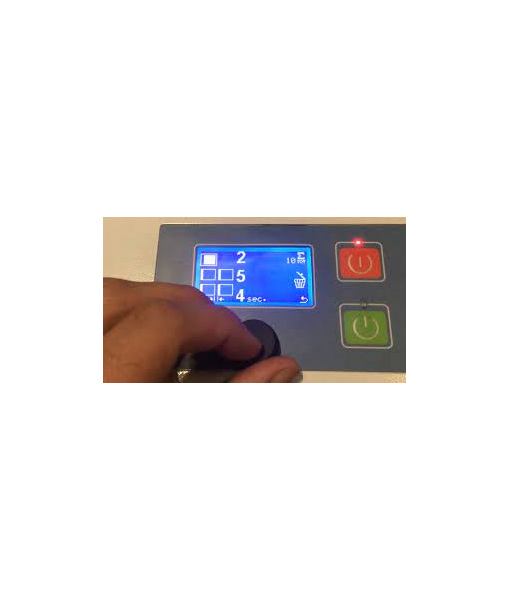

- Digital control panel, start, stop, test test, reset
- Counter with machine stop when the set quantity is reached
- Format: minimum 85 x 128 mm - maximum 320 x 500 mm
- Paper thickness: from 45 to 350 gr
- Voltage: 230 V - 50 Hz
- Consumption: 80 W
- Adjustable speed: up to 13,500 A5 sheets per hour
- Overall dimensions (LxWxH): 470 x 530 x 280 mm
- Weight: 25 kg
- Hatch punches available: 26 TPI (teeth per inch) recommended for 60-100 grams cards (standard equipment) 17 TPI (teeth per inch) recommended for 100-150 grams cards (on request) 11 TPI (teeth per inch) recommended for cards 150-300 grams (on request)
Price
Description

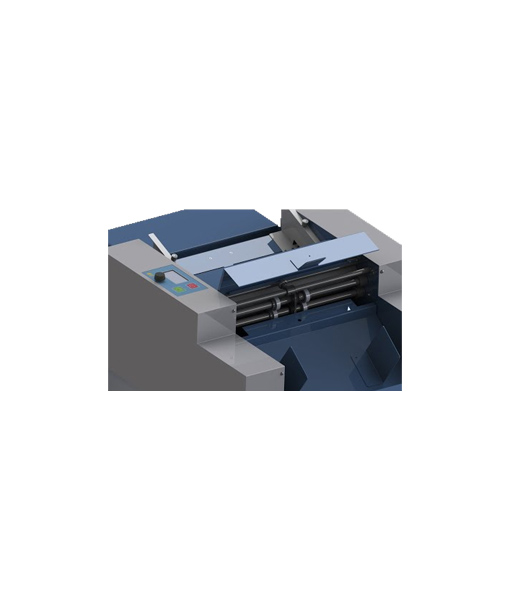

Automatic rotary micro-drilling machine with friction feed. Adjustable speed up to 13,500 A5 sheets / hour. Uncoated paper with a minimum weight of 45gsm and a maximum of 350gsm. High load capacity (up to 500 sheets 80 gr) and the possibility to quickly correct any print alignment errors. The machine comes with a perforation mold. Up to 5 molds can be installed at a minimum distance of 30mm from each other. The digital control panel with speed regulation and counter facilitate the operator’s work.
