Trimfast TFMS-210
- 0 Review(s)
- Add your review
- instock
- Trimfast TFMS-210
Key Features
Great for use in
Ideal for cutting
- Full length clamping systems
- Two production stops
- Laser sight line for all materials
- Integral counterbalance
- Extension arms for wider media
Great for use in
- Sign makers
- Vehicle graphics firms
- Exhibition graphics companies
Ideal for cutting
- Foam board (13mm / 0.5")
- PVC (13mm / 0.5")
- Corrugated card & plastic (20mm / 0.8")
- Scores acrylic
- Aluminium composite panel (4mm / 0.2")
- MDF (3mm / 0.1")
- Aluminium panel (1mm / 0.04")
| Accessories | |
|---|---|
| TFMS-TH1 Utility Blade Cartridge |  |
| TFMS-UB Utility Blades x 100 | |
| TFMS-TH2 Aluminium Composite Cartridge |  |
| TFMS-TH3 Aluminium Composite 'V' Groover Cartridge | |
| TFMS-TH4 Acrylic Scoring Cartridge | |
| TFMS-FSK Free Standing Kit | |
Price
Description

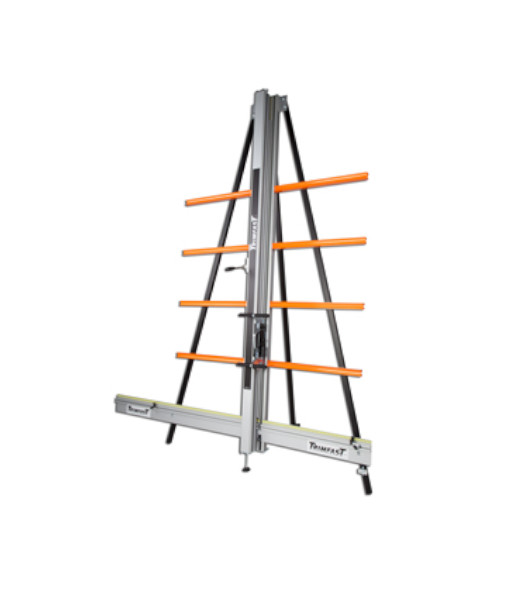

Trimfast A-Frame Vertical Multi Substrate Cutter is a revolutionary vertical cutter that offers a high degree of performance & accuracy.
Manufactured in the UK, the Trimfast A-Frame Vertical Multi Substrate Cutter is a truly affordable finishing solution for any sign making business.
The Trimfast A-Frame is designed to cut cleanly and accurately, without dust and without noise. Featuring interchangeable tool cartridges which can be changed in under 10 seconds, you will only need to buy the tools you need. Repeat cuts for production runs are made quick & accurate with the 2 production stops and with the built-in counterbalance, hands are left free for loading material and causing less operator fatigue. The A-Frame also includes end caps on each of the support beams as an added safety feature.
| Specifications | |
|---|---|
| Stand | Optional Extra |
| Max. Thickness (mm / inches) | 13 / 1 |
| Dimensions – Width (mm / inches) | 2130 / 84 |
| Dimensions – Extended Width (mm / inches) | 2750 / 108 |
| Dimensions – Depth x Height (mm / inches) | 600 x 2620 / 24×103 |
| Weight without Packaging (Kgs / lbs) | 70 / 154 |
| Warranty | 1 Year* |
